Brinno ASP1000-P Solar Kit

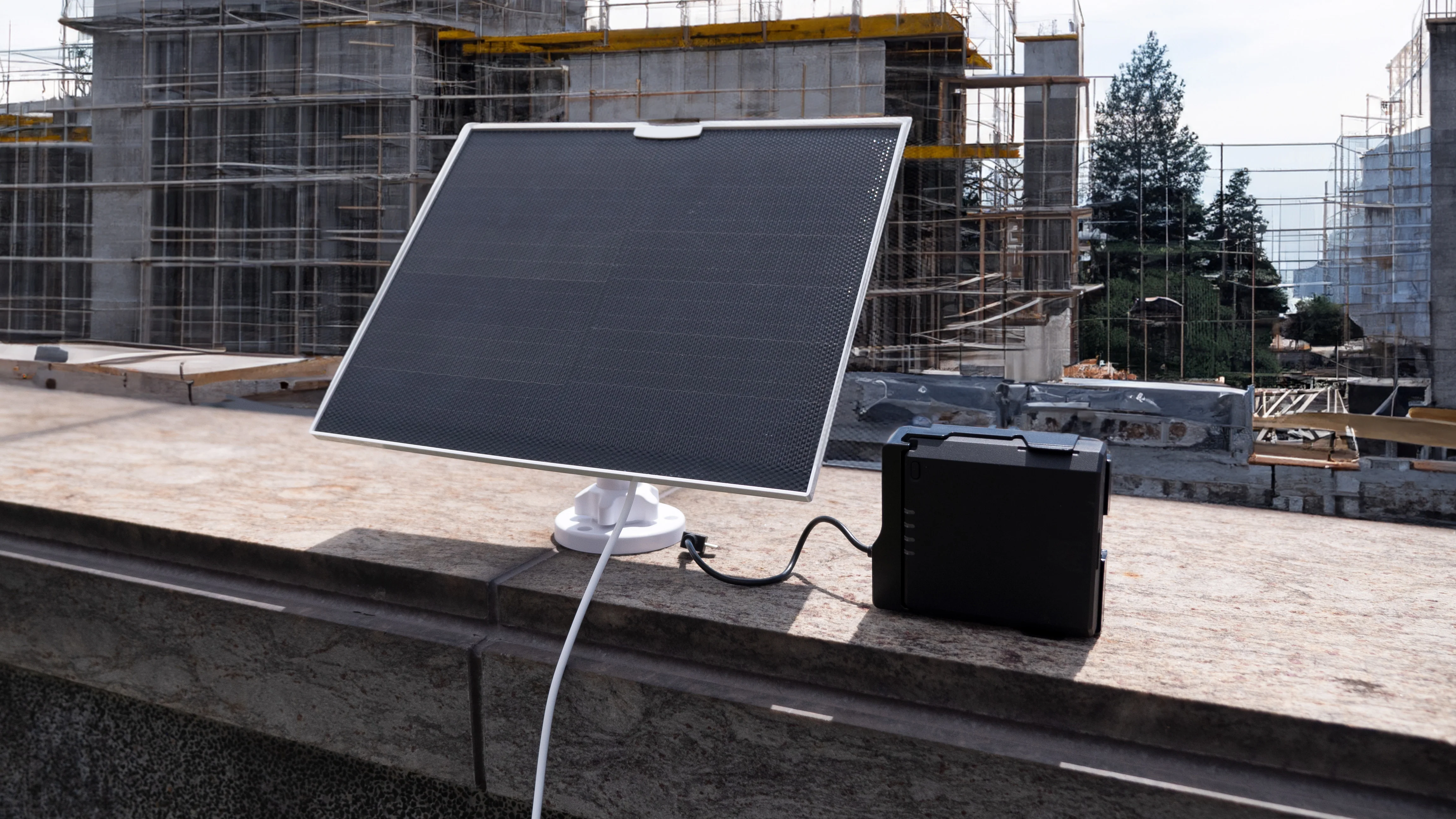

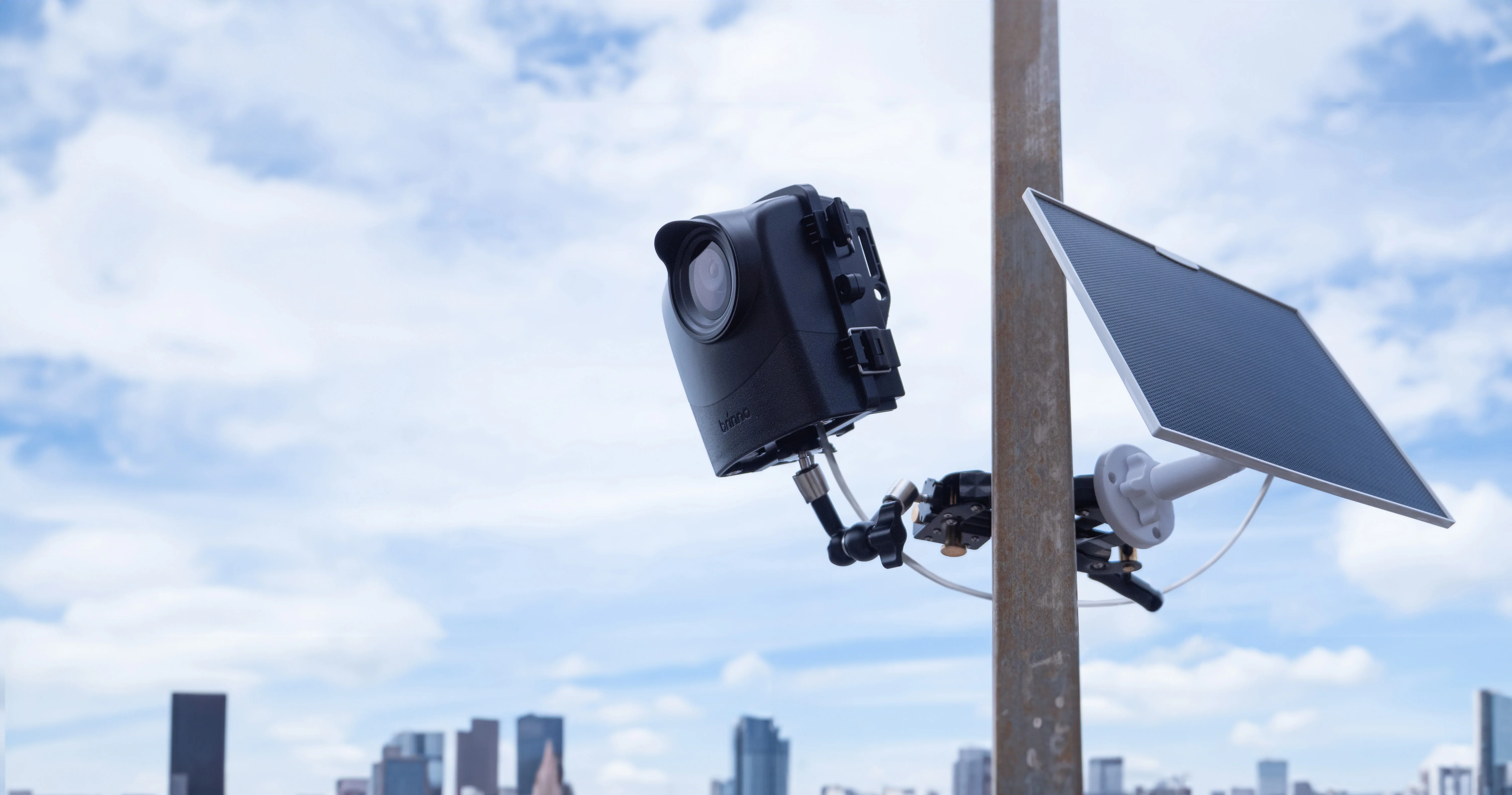

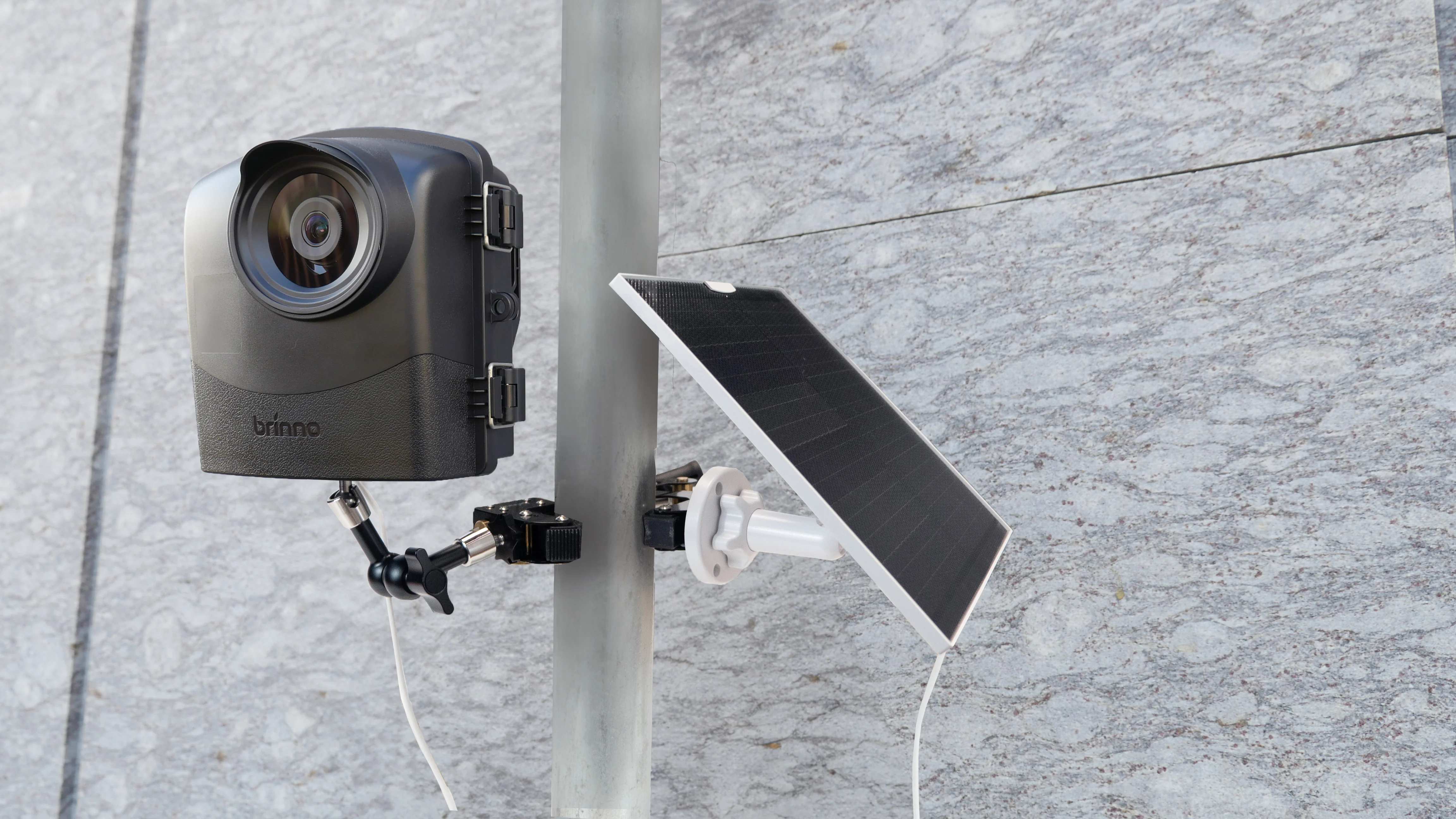

The Brinno Solar Power Kit is specifically designed for the Brinno BCC2000 & BCC2000 Plus construction camera bundles. It includes a 10W monocrystalline silicon solar panel with higher conversion efficiency and the Brinno Rechargeable Battery kit. It generates a continuous power supply for the time-lapse camera through direct sunlight.

WHAT'S IN THE BOX?

• Solar Panel
• Rechargeable Battery Pack
• Universal Joint
• Locking Screw Cap
• Clamp Mount Plate
• Machine Screws
• Wood Screws
• Wall Anchors

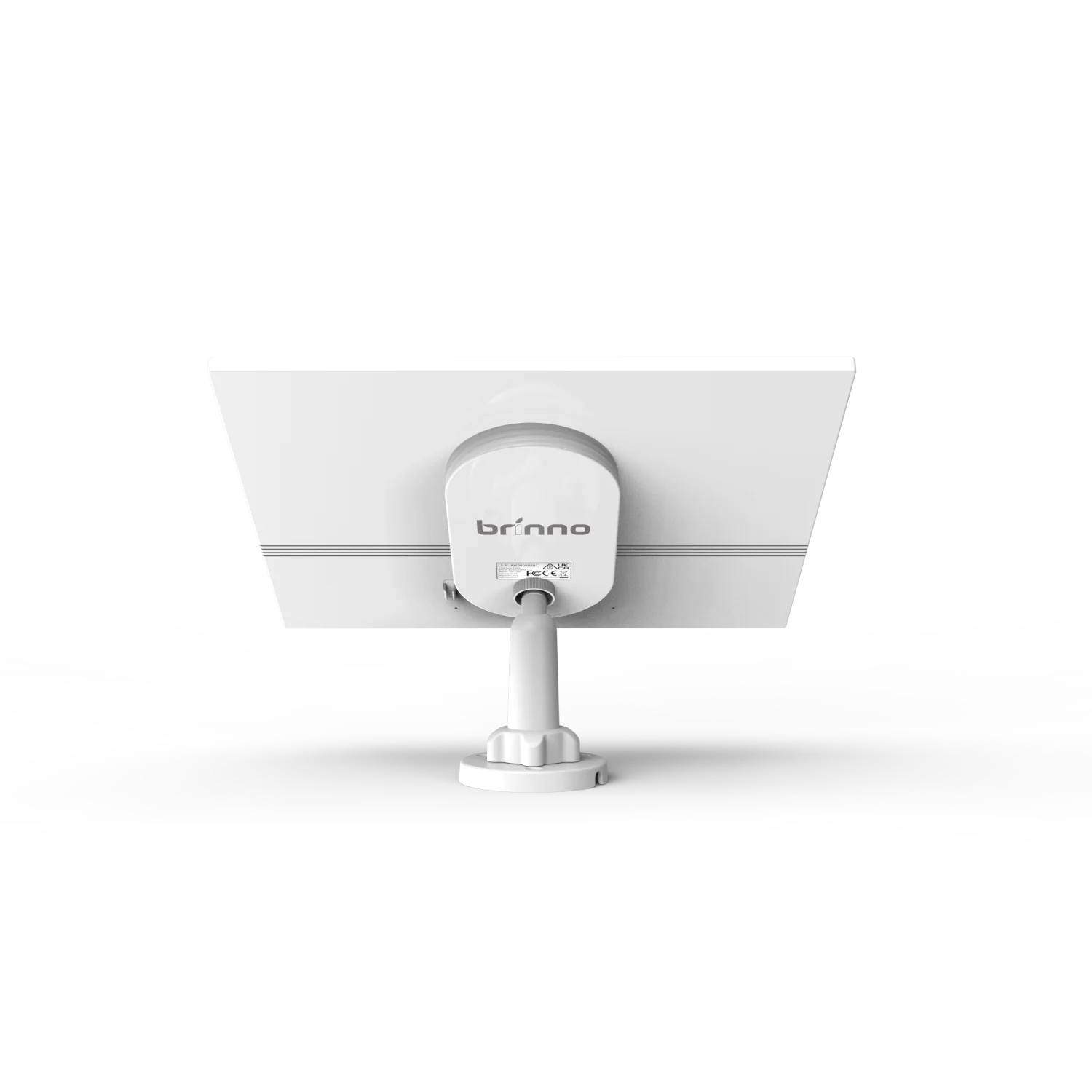

The solar panel is designed to be weather resistant and comes with a 9.8-foot (3 meter) USB-C power cable. Additionally, it features an adjustable mount for easy installation in any location. The rechargeable battery kit includes a 13,800 mAh/ 49.6 Wh rechargeable battery pack and an external power adapter. It is specifically designed to be compatible with the Brinno BCC2000 & BCC2000 Plus construction camera bundles and perfectly fits the original power housing (ATH2000). This kit supports continuous power supply for long-term time-lapse recording.

KEY FEATURES

Rechargeable Battery Pack
Power your camera with limitless energy from the battery kit. The rechargeable kit eliminates the hassle of switching batteries, and extending the lifespan of single charge to infinity.

10W Solar Panel
High efficient conversion rate solar panel that convert the infinite sunlight into reusable energy, ensuring a sustainable and consistent power resource for time lapse cameras or any gadgets.

Always-on for Timelapse Camera
Truly worry-free recording experiences with continuous power supply to make sure every moment was captured without missing a shot from the time lapse camera.



SPECIFICATIONS

SOLAR PANEL

Model No.	ASP1000
Solar Power Rating	10W
Operating Voltage	5V DC
Power Connection	USB-C
Conversion Rate	>20%
Works With	Brinno Rechargeable Battery Kit (APB1000)
Waterproof	IP65
Size (WxHxD)	Solar Panel: 8.4 x 10.3 x 0.8 in (214 x 262 x 20 mm) USB-C Cable: 9.8 ft (3 m)
Weight	23.2 oz (660 g)



RECHARGEABLE BATTERY KIT

Model No.	APB1000
Power Source	Brinno Battery Pack (MRB1000)
Energy Capacity	12,600 mAh/ 45.4 Wh
Always-On Mode	Provides continuous power supply for low power time lapse camera or IoT application.
Solar Panel Requirement	•Output wattage: 5W (minimum), 5V •USB-C connector
Input Port	USB-C (support 5V 2A quick charger) (on battery pack)
Output Port	1.Micro USB connector (for Brinno camera) 2.USB-C port
Output Voltage & Output Current	•5V 2A (max. for total two output) •Micro USB: continuous output 5V 500mA (Max instantaneous output 5V 1A) •USB-C: continuous output 5V 1A
Compatible Models	•BCC2000 & BCC2000 Plus •TLC2000/2020 with ATH2000 construction power housing
Ambient temperature	-4 °F ∼140 °F (-20 °C ∼60 °C)*
Size (WxHxD)	3.68 x 3.22 x1.46 in (93.5 x 82 x 27.2 mm)
Weight	9.9 oz (280 g)
Package Contents	Brinno Battery Pack (MRB1000) x1; External Power Adapter; Hook and Loop

NOTE: Built-in short circuit protection when over charge, over discharge, over temperature (45℃Input Cutoff, 60℃Output Cutoff), under temperature (0℃Input Cutoff, -20℃Output Cutoff)

Please note, this is compatible with the BCC2000/BCC2000 Plus and TLC2020 series only. This is not compatible with the TLC300 series.
